DOUBLE COLUMN PLANO MILLING MACHINE
Make: STANKO - UZTS, Russia
Type: 6620
New in: 1976
Technical details:
Table width 2000 mm
Length of table working surface 6300 mm
Max heigh of workpiece 2000 mm
Max length of moving table 6800 mm
Maximum weight of workpiece 50 ton
Weight of machine 115 ton
Overall dimention: 19680x7450x7100
This machine uber power still
|
|
|
Slide ways GRINDING MACHINE
Model: 20FS4030
typ: Two heads slide-way grinding
Manufacturer: WALDRICH COBURG
Control: conventionel
Breef specification:
- Size of table 2000 x 10000 mm
- Max.Grinding length 10500 mm
- Max.Grinding width 2200 mm
- Max.Workpiece height 2000 mm
- Column daylight 2240 mm
- max. weight of workpiece 30 ton
- weight of machine 154 tons
-overall dimention: 19680x7100x7510
- manufacturing 1968
- finished installed on base in 1970
|
|
|

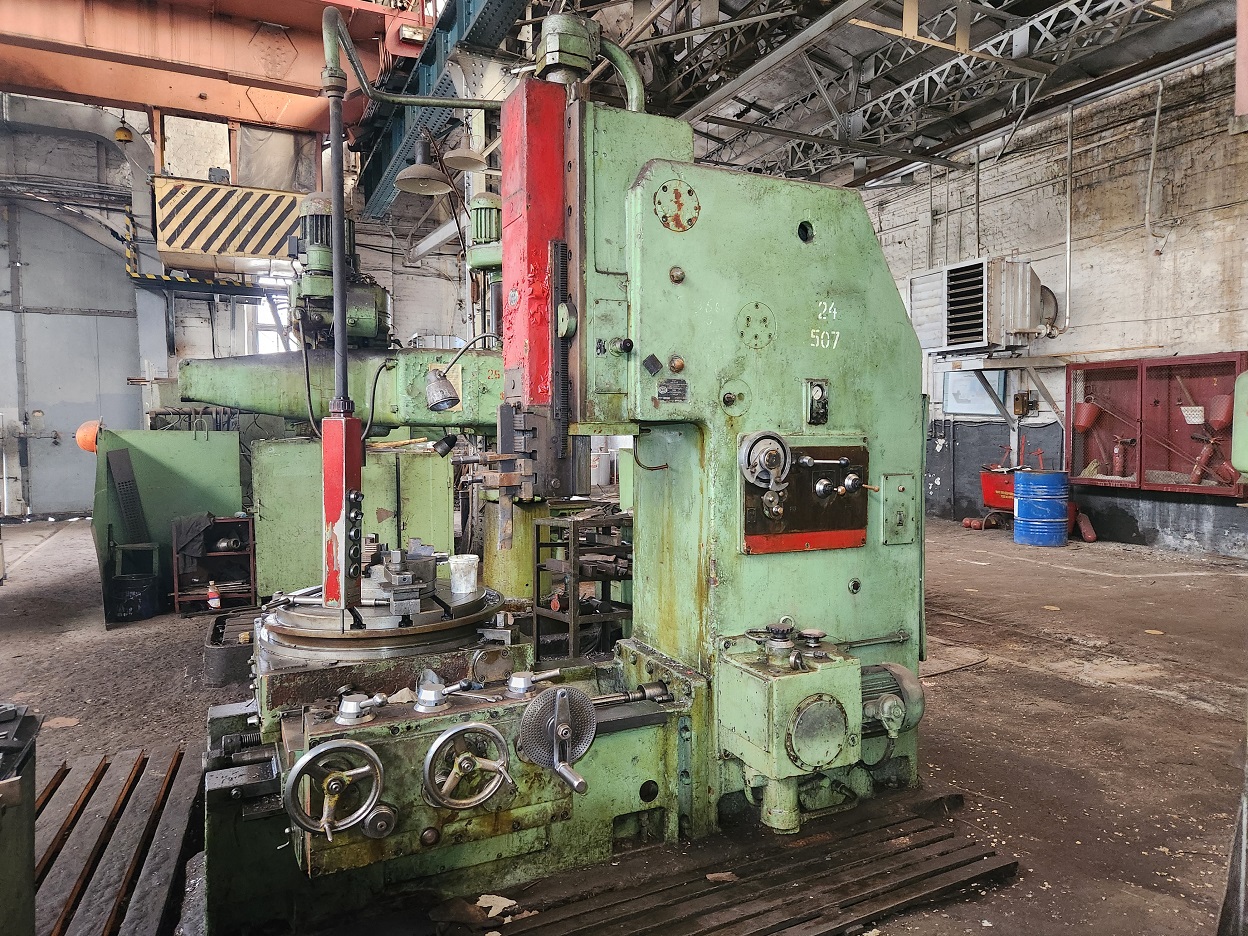

Gear hobbing machine STANKO, Russia
Type: 53A11 serial ¹ 197
New in 1989
SPECIFICATIONS:
1.Max diameter of workpiece hobbed:
- with support column, mm 1250
- without support column, mm 1500
2.Max module of gears hobbed, mm 16
3. Table diameter, mm 1050
4. Min number of tooth hobbed 12
5.Maximum dimensions of hob mounted: Dx L: 225x250 mm
6. min/max distance from surface table - cutter axis - 235/885
7. min/max distance bwn axies of table and cutter - 100/750
8.Maximum vertical travel of hob slide, mm 650
9.Maximum hob axial shifting, mm 245
10. number of feed steps - 9
11. Taper of hole in cutter spindle Morse 6
12. Power of main drive electric motor, kW 8/10/12,5
13.Voltage 380 V 50 Hz
14.Overal dimensions, mm: 4020 x 2700 x 2780
15.Mass of machine, kg 17850
This machine is available on warehouse and can be shipped
in any time.
|
|
|
Specification:
1.diameter of spindle 100 mm
2. X axis 1250 mm
3. Further parametres
4. Y axis 1120 mm
5. Z axis 1250 mm
6. W axis 900 mm
7. spindle taper MORSE 6 .
8. max. spindle speeds 900 /min.
9. table dimensions 1250 x 1250 mm
10 max.work weight 3000 kg
11 motor capacity 7,5 kW
12 machine input 17 kVA
13 dimensions 6000 x 3700 x 3000 mm
14 machine weight 13550 kg
|
|
|
HORIZONTAL BORE MACHINE UNION BFT90/3-1
Serial Number: 19325/23
TECHNICAL DATA:
1.Size of the Table, 1000x1120mm
2.Travels:
X-axes 1000 mm;
Vertical movement headstock Y-axes 1000 mm;
Z-axes 1600 mm;
W-axes 710 mm.
2.Diameter of spendle, 90 mm
3.Spindle taper 50MK/MT
4.Range of spindle speed, Ist: 8…40 r.p.m.
IIst: 0…250 r.p.m.
IIIst: 315…1600 r.p.m.
5.Range of spindle feeds, mm/min X,Y,Z,W 1…2500
6. Revolve of table, grad 360
7.Power of electric main drive motor, kw 11
8.Mass of the workpiece,kg 2500
9.Overall dimensions, mm 5900x3140x2620
10.Mass of mashine, 9700 kg
|
|
|
|
|
